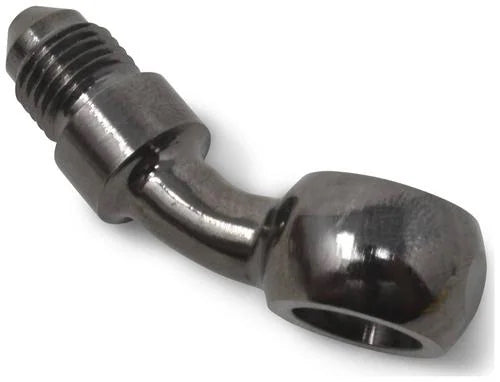

Russell 3AN X 10mm (3/8") 35 Degree Banjo Bolt With Black Finish
Part number 640513 (13-363) a Russell Performance 35-degree banjo brake line adapter fitting. This fitting is used to connect -3 AN braided hoses to standard 10mm (3/8") banjo bolt connections.
Product Specifications
Manufacturer: Russell Performance Products (an Edelbrock company).
Fitting Type: AN to Banjo Adapter.
Angle: 35 degrees.
Connections: Side A is a -3 AN Male thread, and Side B is a 10mm (3/8") ID Banjo.
Material: Machined steel for strength and durability.
Finish: Black zinc plated (or black anodized).
Weight: Approximately 0.08 lbs.
UPC: 087133924601.
Fitments and Compatibility
This is a universal fitting with no specific vehicle application assigned. It is used for custom fluid transfer systems.
Brake Systems: Its primary use is in custom hydraulic braking systems (and clutch lines) to route -3 AN braided steel hose to master cylinders or calipers that have a 10mm (3/8") banjo port.
Other Systems: It can also be used for other fluid systems like turbo oil feeds, oil pressure systems, coolant lines, and power steering applications.
Hose Compatibility: Intended for use with high-performance brake hoses from Russell (e.g., Pro System I or PowerFlex lines) or similar -3 AN lines.
Universal Fitment Requirements
The fitment depends on matching the mechanical dimensions and specifications of the component you are installing it on:
Banjo Bolt ID: The component you wish to attach this fitting to must use a 10mm or 3/8-inch inner diameter (ID) banjo bolt connection point (common on most motorcycle and performance car brake calipers and master cylinders).
Hose Connection: The other side of the fitting connects to a standard -3 AN (Army/Navy) style braided steel hose end (which typically has a 3/16-inch inner diameter hose).
Intended Use: Primarily used for custom hydraulic brake, clutch, or specific oil pressure/feed lines where routing requires a 35-degree angle to clear obstructions.
Summary
If you are building a custom hydraulic system, this part fits anything that requires a 10mm banjo connection transitioning to a -3 AN hose.
Selling as pictured.
