OEM Harley Davidson Fork Brackets Socket Head Cap Screw Touring Softail 10500022
Part #: 10500022
Harley-Davidson part number 10500022 is a hex head screw, specifically described as a 5/16-18 X 1-1/2 SEMS hex socket head screw.
It is used in various applications across many Harley-Davidson models, including the front fork brackets and rear brake master cylinder assemblies
- Type: Hex Socket Head Cap Screw with SEMS washer (SHCS, SEMS).
- Thread Size: 5/16-18 (5/16 inch nominal diameter, 18 threads per inch, Unified Coarse thread).
- Length: 1-1/2 inches (1.5 inches).
- Material/Grade: Indicated in some hardware listings as Grade 8 steel.
- Finish: Indicated in some hardware listings as a zinc finish.
- Drive Type: Requires a hex (Allen) wrench for installation/removal.
- Fork Brackets, Front: Used in many Touring (Electra Glide, Road Glide, Road King, Ultra Limited) and Trike models from at least 2014 to 2024.
- Brake Master Cylinder, Rear / Brake Lines and Module, Rear - ABS/Non-ABS: Used in numerous Softail models (Breakout, Fat Bob, Fat Boy, Heritage Classic, Low Rider, Sport Glide, Street Bob) from at least 2018 to 2024.
Fitment: Harley-Davidson part number 10500022 is used in the front fork brackets of many Touring and Trike models (2014-2024), and in the rear brake master cylinder/brake lines assembly of numerous Softail models (2018-2024).
Fitment by Model Family and Location
Touring and Trike Models (Fork Brackets, Front):
This part is primarily used in the front fork brackets assembly for various models across many years, from at least 2014 to 2024.
- Electra Glide (FLHTP, FLHTCU, FLHTCUL, FLHFB, FLHT): Police, Ultra Classic, Low, Standard, and Highway King editions across various years.
- Road Glide (FLTRX, FLTRXS, FLTRU, FLTRK, FLTRXP): Standard, Special, Ultra, Limited, and Police editions across various years.
- Road King (FLHR, FLHRC, FLHP, FLHRXS): Standard, Classic, Police, and Special editions across various years.
- Street Glide (FLHX, FLHXS, FLHXST): Standard, Special, and ST editions across various years.
- Trike (FLRT, FLHTCUTG, FLTRT): Freewheeler, Tri Glide Ultra, and Road Glide 3 models across various years.
- CVO Models: Various CVO (Custom Vehicle Operations) models such as the FLHTKSE, FLHXSE, FLTRXSE, FLTRKSE, and FLHTCUTGSE are also compatible across multiple years.
Softail Models (Rear Brake Assembly):
For the Softail family, the screw is primarily used around the rear brake master cylinder and related ABS/non-ABS brake line modules, typically for models from 2018 to 2024.
- Breakout (FXBR, FXBRS): Used in the rear master cylinder and ABS module.
- Fat Bob (FXFB, FXFBS): Used in the rear master cylinder and ABS/non-ABS lines.
- Fat Boy (FLFB, FLFBS): Used in the rear master cylinder and ABS module.
- Heritage Classic (FLHC, FLHCS): Used in the rear master cylinder and ABS module.
- Low Rider (FXLR, FXLRS, FXLRST, FXRST): Used in the rear master cylinder and ABS/non-ABS lines for Standard, S, ST, and El Diablo models.
- Softail Slim (FLSL): Used in the rear master cylinder and ABS/non-ABS lines.
- Sport Glide (FLSB): Used in the rear master cylinder and ABS module.
- Street Bob (FXBB, FXBBS): Used in the rear master cylinder and ABS/non-ABS lines.
- FXDR 114 (FXDRS): Used in the rear master cylinder and ABS module.
Please make sure of fitment before buying.

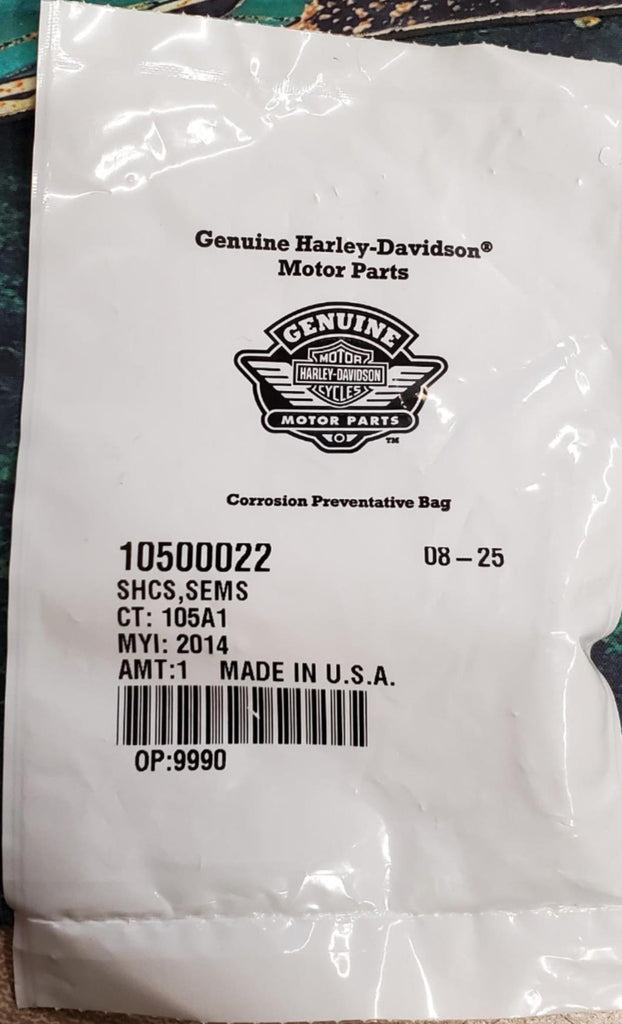

New, did not open for pictures. In sealed packaging.

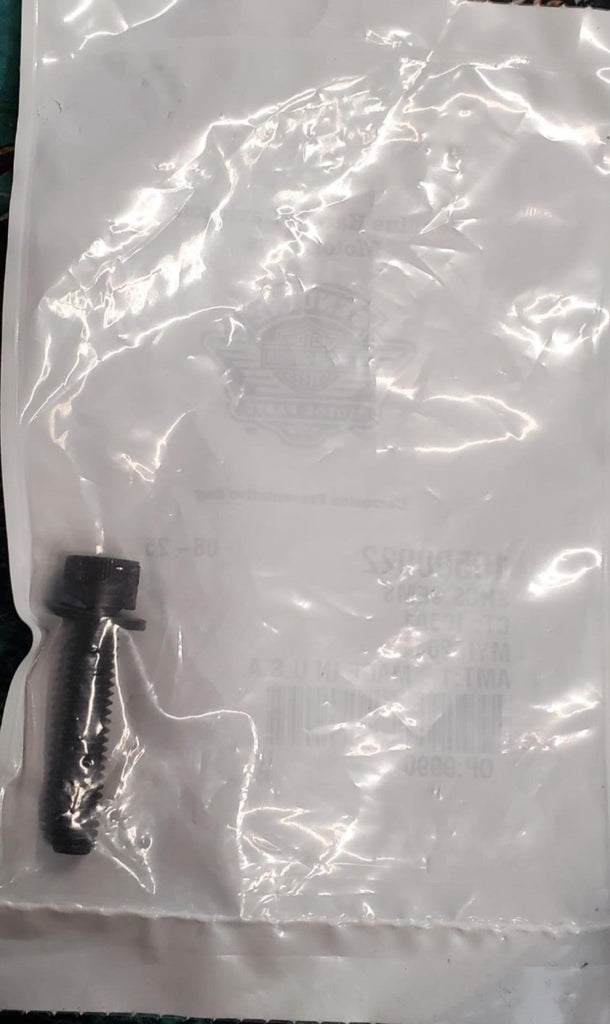

Selling as pictured, save on shipping by coming to store in Butler, PA
012126 CC
