NPR Piston Rings STD Toyota 22R 22RE 2.4L Pickup 4Runner Celica 1985-1995
For Toyota 22R & 22RE 2.4L SOHC Engines (1985–1995)
Restore your Toyota’s compression and oil control with this New Old Stock (NOS) genuine NPR (Nippon Piston Ring) set. NPR is a premier OEM manufacturer for Toyota, offering superior metallurgy and precision compared to generic aftermarket brands. These are the "Late Style" rings designed for the 22R/RE engines found in the iconic Hilux, Pickup, and 4Runner.
Product Specifications
- Brand: NPR of America (NOA) / Nippon Piston Ring
- Part Number: SWL0149AB (Cross-ref: C1371)
- Size: Standard (STD)
- Bore Diameter: 92.00 mm
-
Ring Thickness:
- Top Ring: 1.5 mm
- Second Ring: 1.5 mm
- Oil Ring: 4.0 mm
-
Application: Toyota 2.4L 22R / 22RE Engines (Approx. 1985–1995)
- Common Models: Toyota Pickup, 4Runner, and Celica.
Technical Installation & Gap Specs
For the best seal on a 22RE rebuild, adhere to these factory-style specifications:
- Standard End Gap (Top Ring): 0.25mm – 0.47mm (0.010" – 0.018")
- Standard End Gap (Second Ring): 0.15mm – 0.40mm (0.006" – 0.016")
- Orientation: Look for the "N" or "T" mark on the ring face. This mark MUST face up toward the cylinder head (piston crown).
- Staggering: Position ring gaps 90 to 120 degrees apart. Never align gaps with the piston pin axis or with each other.
Condition Note

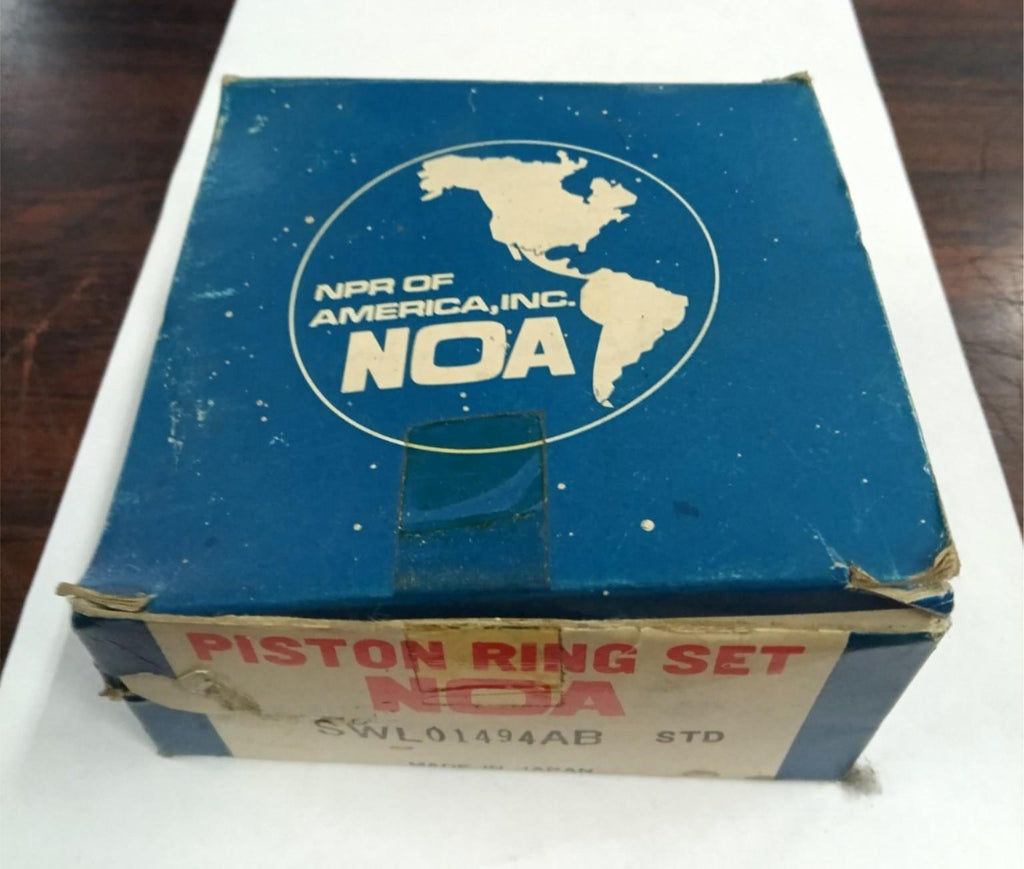

These are New Old Stock (NOS) items. The rings are in factory-new, unused condition. The original NPR/NOA packaging may show minor shelf wear or "shop wear" from storage, but the components are 100% functional and ready for installation.
selling as pictured.
more than welcome to pick up at shop in butler pa & save shipping.
