Magnum Shielding 28" Front Upper Brake Line Kit 90/12mm Banjo Harley Softail

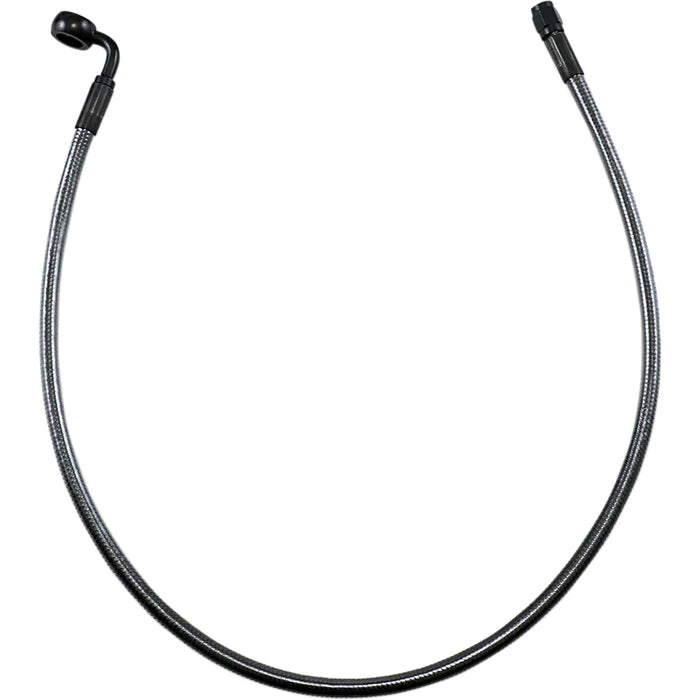

Part number 1741-5512 (Magnum Shielding MPN: AS478028) is a Designer Series ABS-Specific Front Upper Brake Line in a Black Pearl finish.
Product Specifications

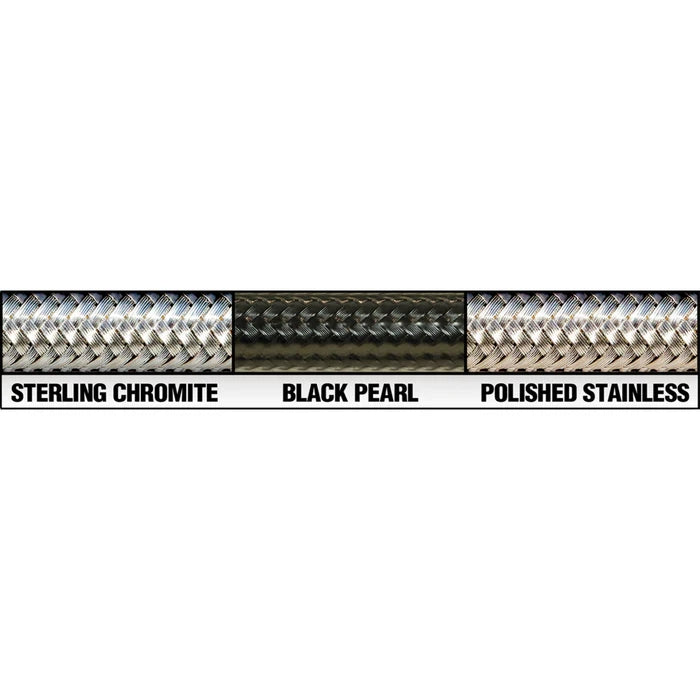

Finish: Black Pearl (braided stainless steel with a UV-resistant clear PVC jacket for a high-tech "carbon fiber" look).
Length: 28 inches (71 cm).
Fitting: Includes a 12 mm, 90° upper banjo fitting at the master cylinder and a universal AN-3 female fitting at the other end.
Braking System: Specifically engineered to meet DOT FMVSS-106 requirements for Harley-Davidson ABS systems.
Construction: Features PTFE inner tubing with DuPont™ Kevlar® aramid fiber reinforcement to reduce line expansion.
Specs
Product Name- Brake Line
Type- Universal
Model- Designer Series
Color/Finish- Black / Black Pearl
Material- Stainless Steel
Length- 28" / 71 cm
Upper Banjo Fitting- 12 mm 90° Banjo Fitting
for Braking System with ABS
Mounting Position- Upper / Front
Units- Each
Riding Style- Street
Part number 1741-5512 is a universal fitment upper brake line, not specific to a single motorcycle model on its own. It is designed as a component within a modular system for custom applications on various Harley-Davidson models with ABS.
Compatibility Requirements
This 28-inch (71 cm) upper brake line is designed to be paired with other specific components to create a complete, functioning ABS-compatible braking system:
ABS System Compatibility: The line is specifically manufactured to be compatible with Harley-Davidson ABS requirements. Using it incorrectly may compromise the anti-lock braking ability.
Modular Assembly: The line has an AN-3 universal female fitting at the bottom end, requiring a connection to an adapter or a corresponding lower brake line assembly.
Softail Models (2018+): For dual-disc Softail models from 2018 and later, this upper line can connect directly to a specific Magnum Designer lower brake line assembly (such as part 1741-5502) without an additional adapter.
Softail Models (2011–2017): An optional ABS upper brake line adapter is required to complete the connection from the ABS controller to the master cylinder when using this upper line.
Measuring is Key: Because it is a universal length part, proper fitment depends on accurately measuring your specific motorcycle's required length, taking into account the handlebar height and routing path.
In summary, the line itself is universal, but its application is specific to Harley-Davidson's ABS systems, requiring correct supporting parts for safe operation.
