Overview of V-Twin Manufacturing Compensator Sprocket Kit 34 Tooth

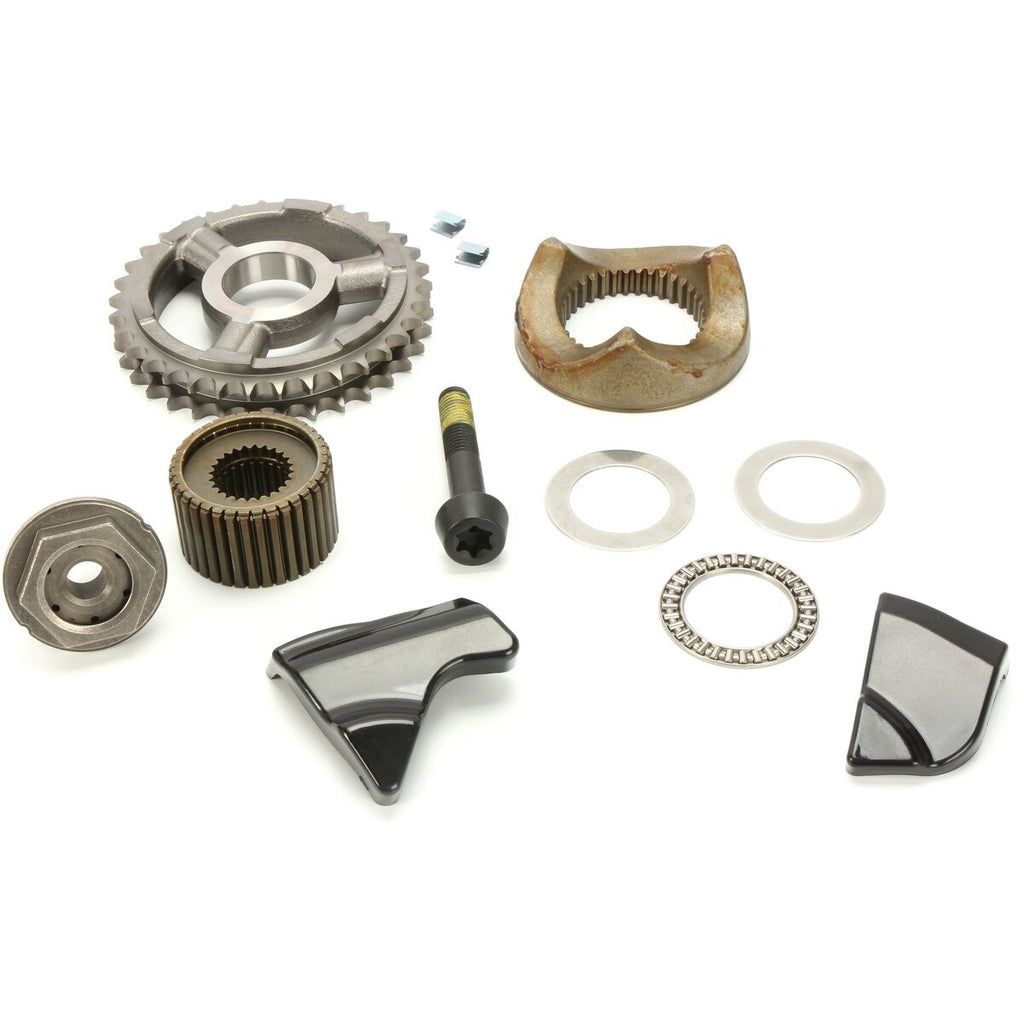

Premium high performance compensator kit is engineered for increased travel. New premium design will support the high torque output associated with high compression and large displacement engines. Original equipment on 2014-17 Dyna, Softail and 2014-16 Touring models Tech Notes: Kit includes the following: Shaft Extension, Sliding Cam, Compensating Sprocket, Thrust Washers, Thrust Bearing, Sprocket Retainer, Torx screw. Also Includes two oil deflectors. One for Touring models, and the other for both Dyna & Softail models, and Retainer Clip. All models will require DK No. 020966 , Compensator Sprocket Spring Pack Kit, which will require a separate purchase. Some models will require two 0.031 thick shims, DK No. 278917 , which will also require a separate purchase. All models will require Installation Adhesive Kit OEM# 11100088 (N/A From DK) Kit can also be used to upgrade 2006-11 FXST, FLST, FXD; 2007-13 FLH, & FLT but requires separate purchase of parts, noted below. 2006-11 FXD, 2007-11 FLST, FXST; 2007-10 FLT, and 2009-10 FLHXXX models require the use of a Volt Tech Alternator Rotor, DK No. 2012468 . (except 2008-2009 FXCW, 2008-11 FXCWC, 2009 FXSTSSE3, 2010 FXSTSE, 2011 FXSTSE2) 2006 FXD models will also require the use of a Volt Tech Unmolded 50 Amp 3 Phase, Alternator Stator: DK No. 2014511 and Volt Tech Alternator Rotor: DK No. 2012468 . 2006-2011 FXST, FLST and FXD models will also require the use of a Softail/Dyna Oil Deflector OEM# 62700064 (N/A From DK) ; Rib Retention Clip (1 required) OEM# 12200065 (N/A From DK) ; Installation Adhesive Kit OEM# 11100088 (N/A From DK) and 0.031” thick shims, (2 required) DK No. 278917 2007-2010 FLT, FLH; & 2009-2010 FLHXXX will also require the use of a Touring Oil Deflector OEM# 62700063 (N/A From DK) ; Rib Retention Clips (1 required) OEM# 12200065 (N/A From DK) ; Installation Adhesive Kit OEM# 11100088 (N/A From DK) and 0.031 thick shims, (2 required) DK No. 278917 Additional Parts Required where Required (Sold Separately): Suggested Parts: DK No. 2014511 Stator (if required) DK No. 2012468 Rotor (if required) DK No. 278917 0.031” thick Shims Note: A new primary cover gasket must be ordered separately for the proper installation of this kit. DK No. 268995 V-Twin Primary Cover Gasket (2007-16 FLT; 2009-13 FLHXXX) DK No. 268996 V-Twin Primary Cover Gasket (2006-17 FXD; FLST 2007-17; FXST 2007-17) DK No. 267645 V-Twin Primary Cover Gasket (FLST 2006; FXST 2006) OEM# 62700064 Softail/Dyna Oil Deflector (N/A From DK) OEM# 63700063 Touring Oil Deflector Kit (N/A From DK) OEM# 12200065 Rib Retaining Clip (N/A From DK) OEM# 11100088 Installation Adhesive Kit (N/A From DK) Suggested Tools: DK No. 285854 Primary Drive Locking Tool DK No. 284321 Compensator Bolt Torx Socket

Specs

Trim Package	CVO
Type - Engine	Twin Cam 103
Type - Engine	Twin Cam 103B Balanced
Type - Engine	Twin Cam 110
Type - Engine	Twin Cam 88 Fuel Injected (Delphi)
Type - Engine	Twin Cam 96 Carbureted
Type - Engine	Twin Cam 96 Fuel Injected
Type - Engine	Twin Cam 96B Balanced
Type - Engine	Twin Cam 96B Fuel Injected (Delphi)
Type - Engine	Twin Cam Style
Type	Compensator Sprocket
Units	Kit
Weight	7.35 lbs

This item fits the following machines:

Harley-Davidson
2009-2013	Dyna Fat Bob - FXDF
2008	Dyna Fat Bob (EFI) - FXDF
2009	Dyna Fat Bob CVO/SE - FXDFSE
2010	Dyna Fat Bob CVO/SE - FXDFSE 2
2009	Dyna Low Rider - FXDL
2007-2008	Dyna Low Rider (EFI) -FXDL
2006	Dyna Low Rider Injected - FXDL I
2009-2013	Dyna Street Bob - FXDB
2007-2008	Dyna Street Bob (EFI) - FXDB
2006	Dyna Street Bob Injected - FXDB I
2009-2010	Dyna Super Glide - FXD
2007-2008	Dyna Super Glide (EFI) - FXD
2009-2013	Dyna Super Glide Custom - FXDC
2007-2008	Dyna Super Glide Custom (EFI) - FXDC
2006	Dyna Super Glide Custom Injected - FXDC I
2007	Dyna Super Glide CVO/SE (EFI) - FXDSE
2008	Dyna Super Glide CVO/SE (EFI) - FXDSE 2
2006	Dyna Super Glide Injected - FXD I
2006	Dyna Super Glide Injected - FXD I 35
2012-2013	Dyna Switchback - FLD
2010-2013	Dyna Wide Glide - FXDWG
2007-2008	Dyna Wide Glide (EFI) - FXDWG
2006	Dyna Wide Glide Injected - FXDWG I
2011-2013	Electra Glide Classic - FLHTC
2011-2013	Electra Glide Police - FLHTP
2011-2013	Electra Glide Ultra Classic - FLHTCU
2011	Electra Glide Ultra Classic CVO/SE - FLHTCUSE 6
2012	Electra Glide Ultra Classic CVO/SE - FLHTCUSE 7
2013	Electra Glide Ultra Classic CVO/SE - FLHTCUSE 8
2011-2013	Electra Glide Ultra Limited - FLHTK
2009-2016	Heritage Softail Classic - FLSTC
2007-2008	Heritage Softail Classic (EFI) - FLSTC
2011-2013	Road Glide Custom - FLTRX
2011	Road Glide Custom 103 PowerPak™ - FLTRX
2012	Road Glide Custom CVO/SE - FLTRXSE
2013	Road Glide Custom CVO/SE - FLTRXSE 2
2011-2013	Road Glide Ultra - FLTRU
2011	Road Glide Ultra CVO/SE - FLTRUSE
2011-2013	Road King - FLHR
2011-2013	Road King Classic - FLHRC
2013	Road King CVO/SE - FLHRSE 5
2011-2013	Road King Police - FLHP
2011	Road King Police Escort - FLHPE
2011-2013	Softail Blackline - FXS
2013-2016	Softail Breakout - FXSB
2013-2014	Softail Breakout CVO/SE - FXSBSE
2010	Softail Convertible CVO/SE - FLSTSE
2011	Softail Convertible CVO/SE - FLSTSE 2
2012	Softail Convertible CVO/SE - FLSTSE 3
2009-2011	Softail Cross Bones - FLSTSB
2008	Softail Cross Bones (EFI) - FLSTSB
2009-2010	Softail Custom - FXSTC
2007-2008	Softail Custom (EFI) - FXSTC
2009-2016	Softail Deluxe - FLSTN
2007-2008	Softail Deluxe (EFI) - FLSTN
2014-2015	Softail Deluxe CVO/SE - FLSTNSE
2007	Softail Deuce (EFI) - FXSTD
2009-2016	Softail Fat Boy - FLSTF
2007-2008	Softail Fat Boy (EFI) - FLSTF
2010-2016	Softail Fat Boy Lo - FLSTFB
2016	Softail Fat Boy S - FLSTFBS
2009	Softail Night Train - FXSTB
2007-2008	Softail Night Train (EFI) - FXSTB
2016	Softail Pro Street Breakout CVO/SE - FXSE
2009	Softail Rocker - FXCW
2008	Softail Rocker (EFI) - FXCW
2009-2011	Softail Rocker C - FXCWC
2008	Softail Rocker C (EFI) - FXCWC
2012-2016	Softail Slim - FLS
2016	Softail Slim S - FLSS
2007	Softail Springer Classic (EFI) - FLSTSC
2009	Softail Springer CVO/SE - FXSTSSE 3
2007	Softail Springer CVO/SE (EFI) - FXSTSSE
2008	Softail Springer CVO/SE (EFI) - FXSTSSE 2
2007	Softail Standard (EFI) - FXST
2011-2013	Street Glide - FLHX
2011	Street Glide 103 PowerPak™ - FLHX
2011	Street Glide CVO/SE - FLHXSE 2
2012	Street Glide CVO/SE - FLHXSE 3
2010-2011	Street Glide Trike - FLHXXX
