Adjustable Machinist Sine Plate Tilting Grinding Milling Fixture Lock Handle
Up for sale is a heavy-duty, precision adjustable machinist sine plate / tilting fixture block.
FEATURES:
Heavy-Duty Build: Features a solid 5/8" thick steel base measuring 10" x 9" and a 1/2" thick top plate measuring 8 3/4" x 4 1/2".
Full Range Motion: Offers a 45-degree slope orientation with a full 90-degree total travel capabilities.

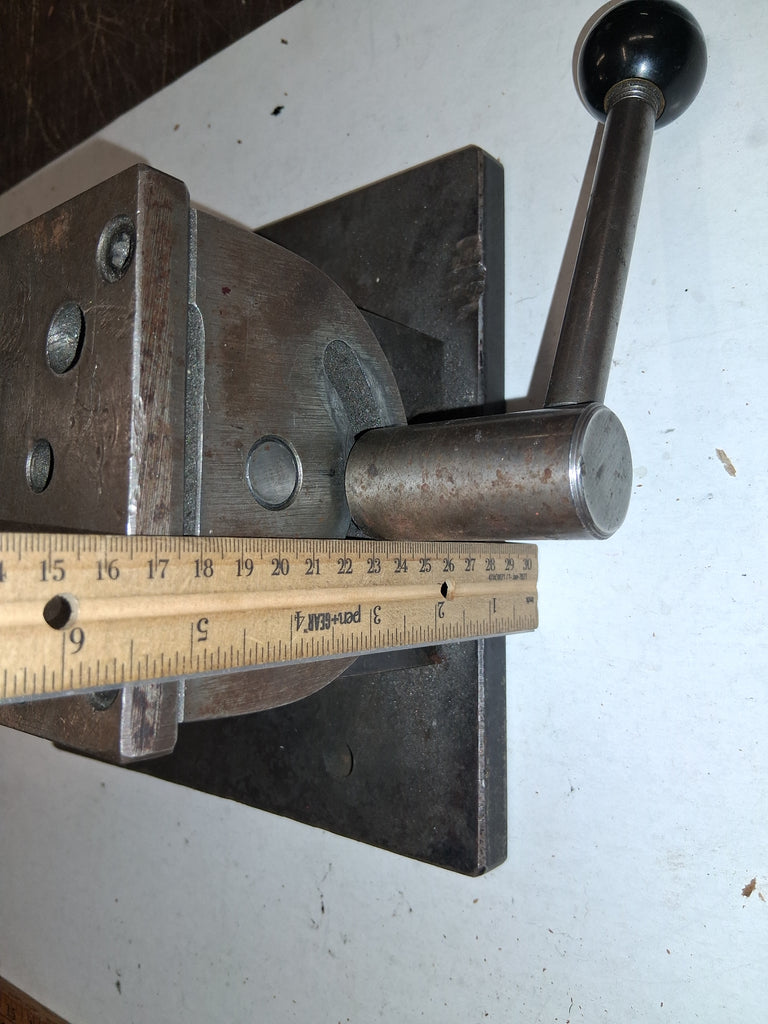

Positive Lock Handle: Equipped with a smooth-action, high-torque side locking handle.

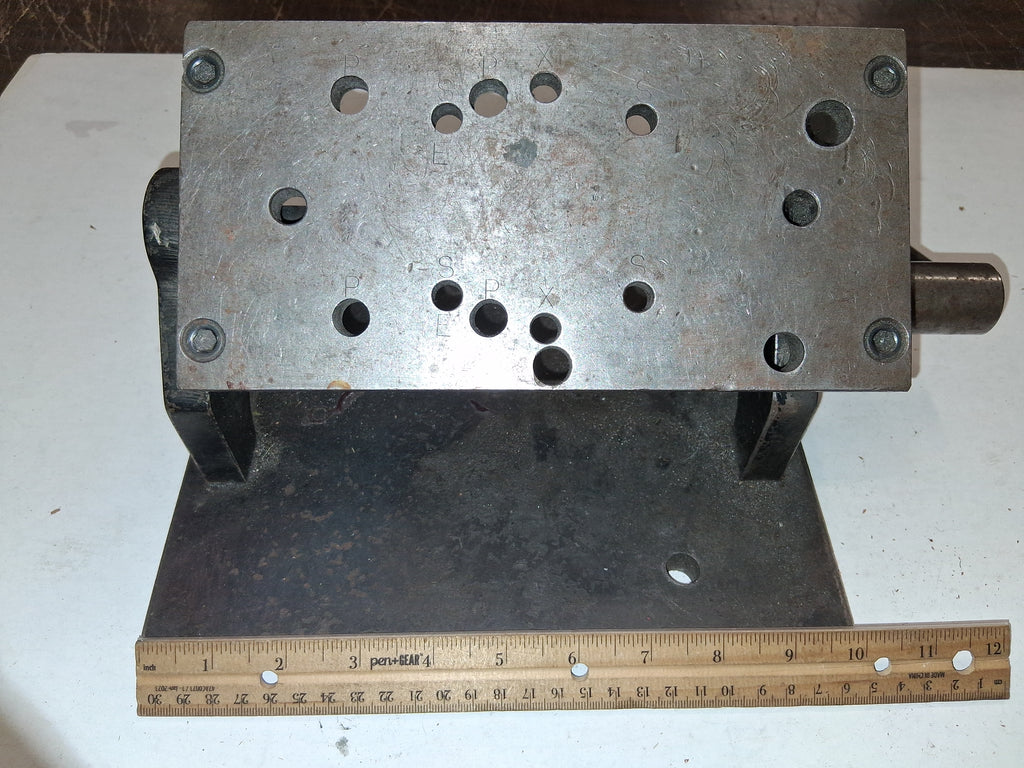

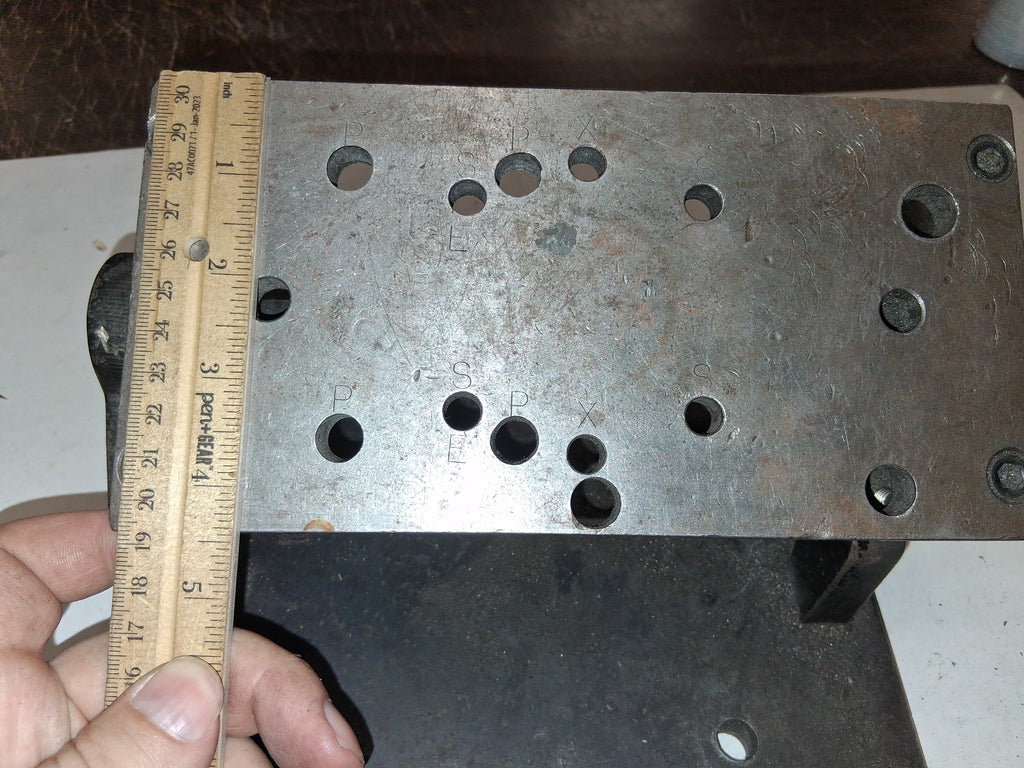

Dedicated Grid Pattern: The top plate features a custom drilled and tapped multi-hole layout pattern with stamped letter markers (P, E, S, X) for repeatable clamping setups.

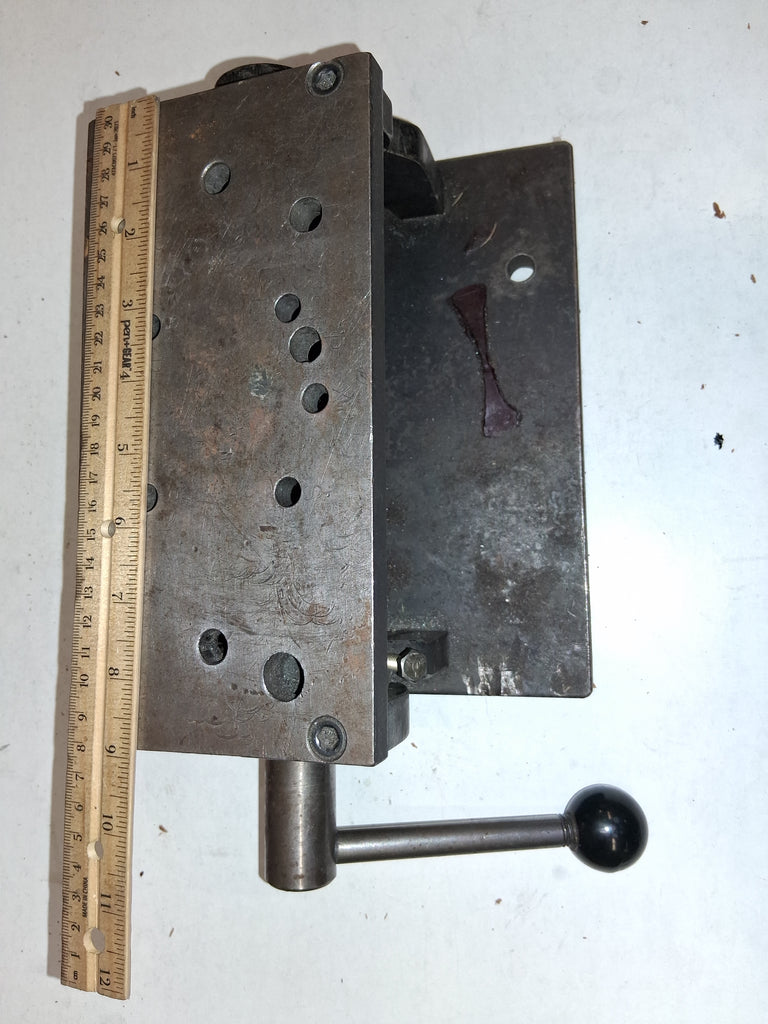

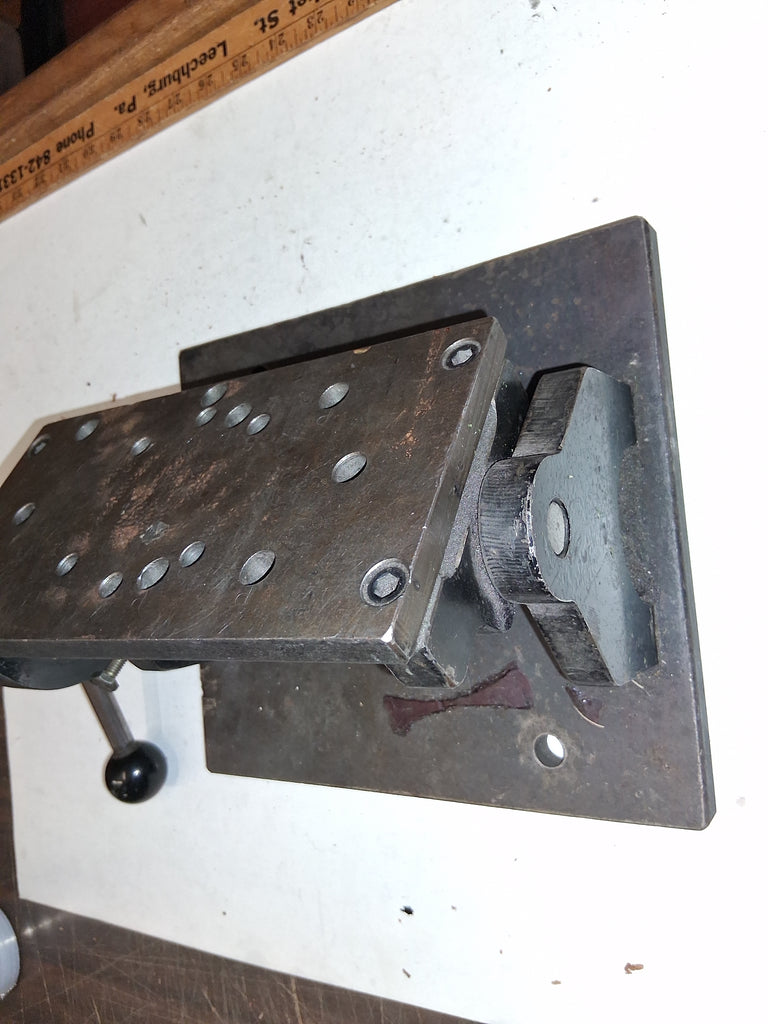

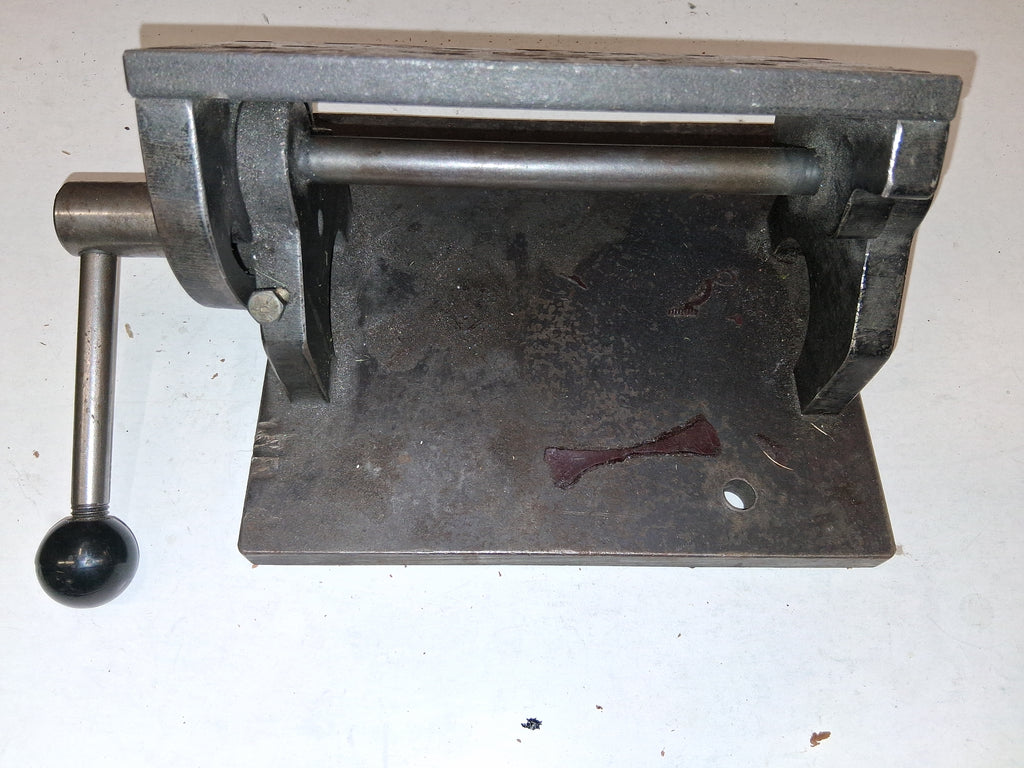

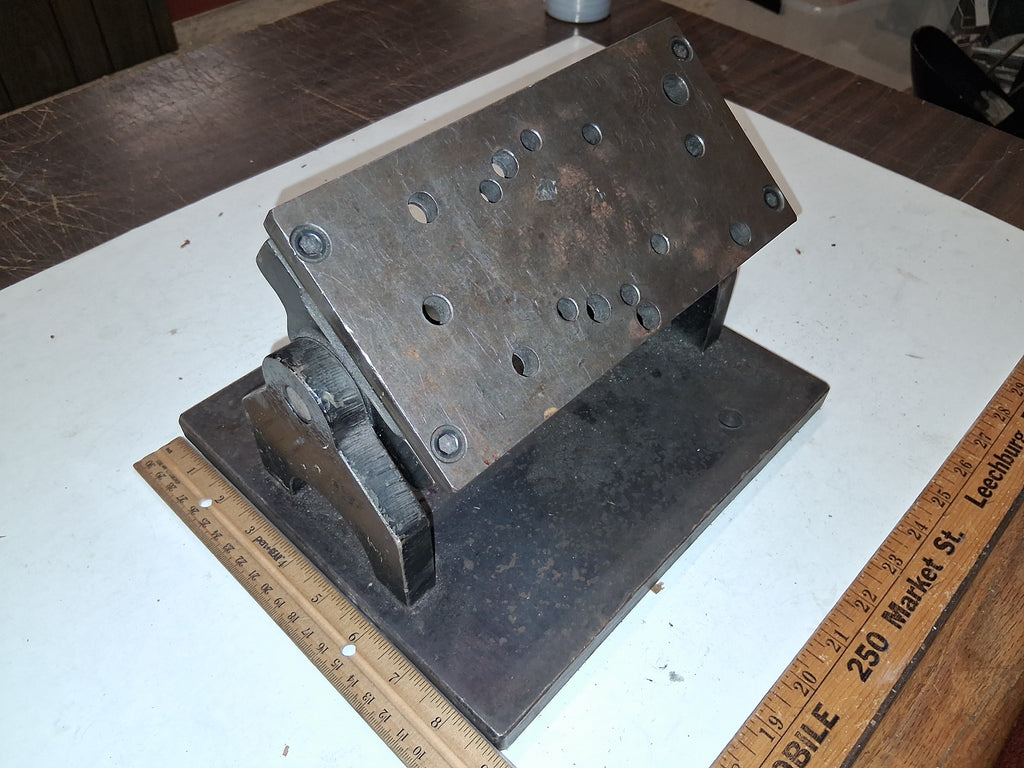

CONDITION NOTE: The fixture is in solid, fully functional mechanical condition. The hinge pivots smoothly and locks down incredibly tight.Well maintained used piece. Please see photos for exact measurements and details.
Selling as pictured 070326 GP
