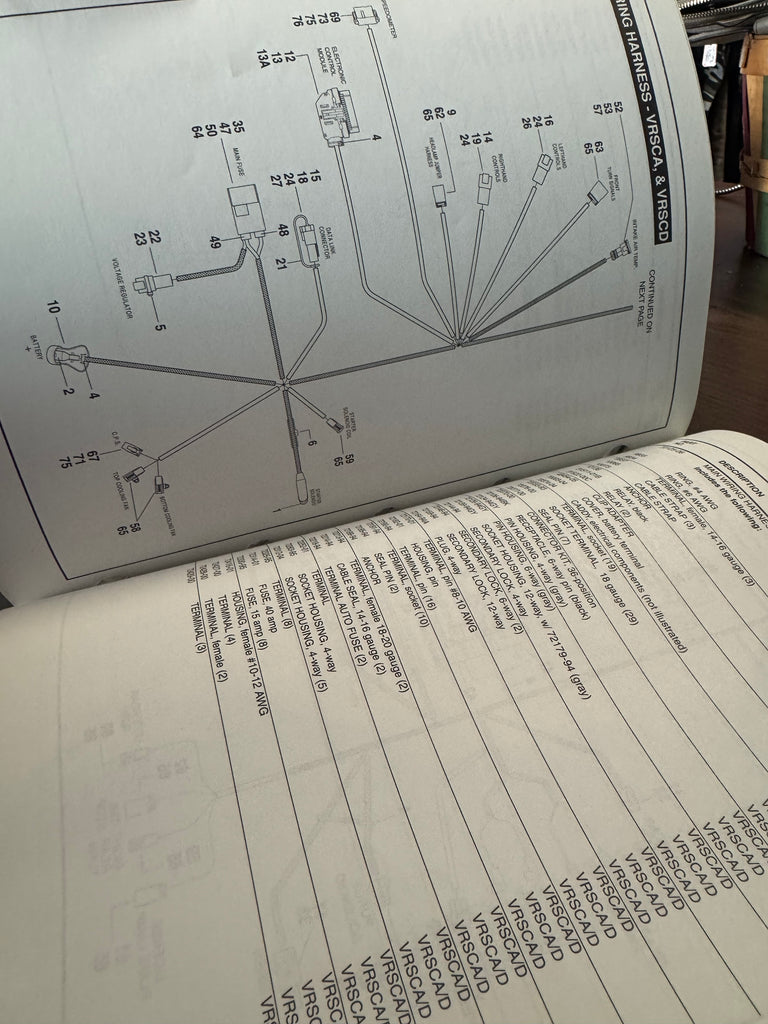

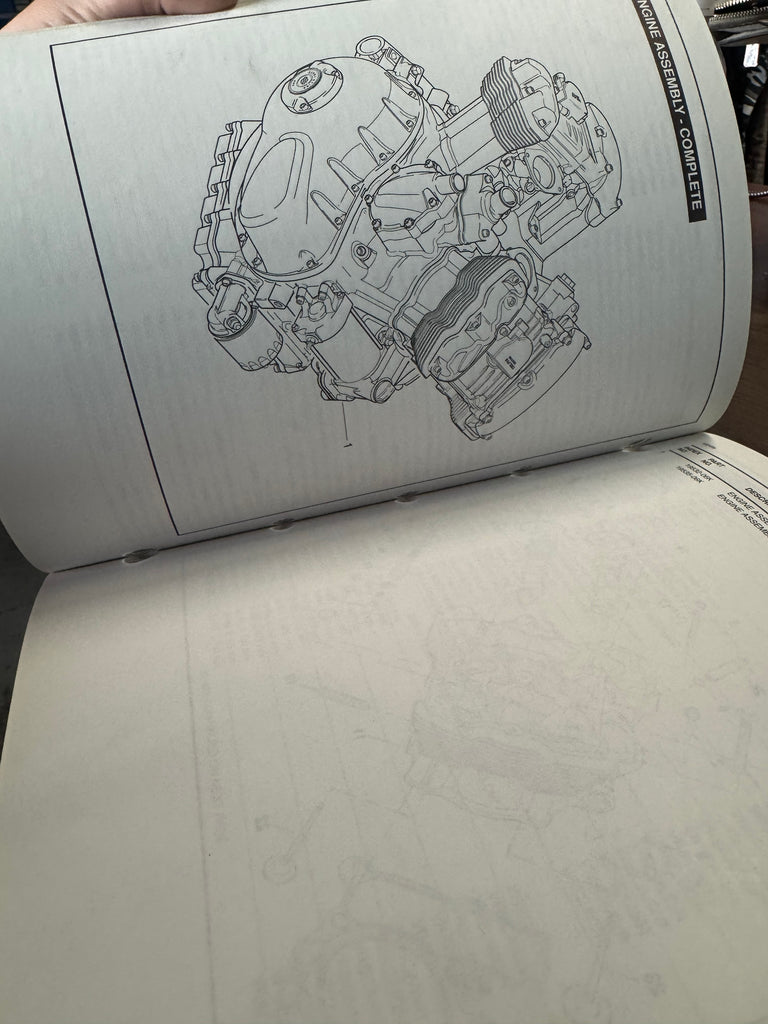

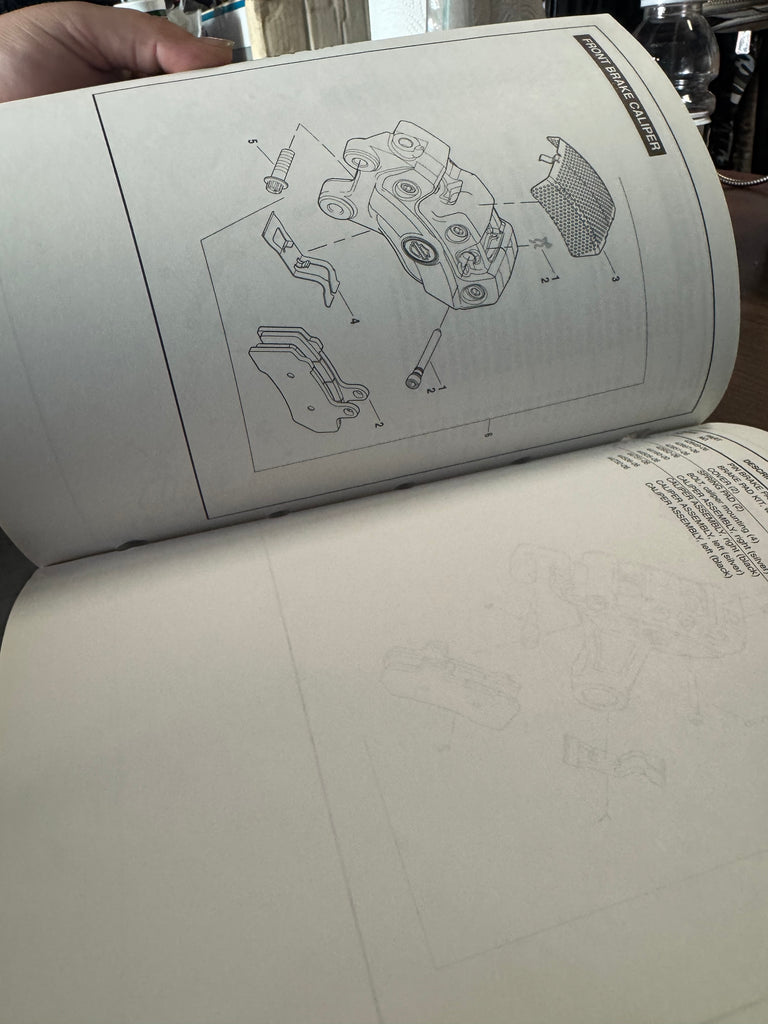

This catalog provides full schematics, factory part numbers, and diagrams for 2006 model-year liquid-cooled, V-Twin powered "V-Rod" platform bikes, including the VRSCA, VRSCD (Night Rod), and VRSCR (Street Rod).Layout & Size: The standard paper dimensions of these bound multi-hole factory catalogs are roughly 8.5 inches wide by 11 inches tall. As shown by the tape measure positioned on the left side, the height sits right at the standard 11-inch mark.Content and LayoutInside, the manual features broken-down sub-assembly illustrations to help you source or rebuild items including:Engine & Drivetrain: Full breakdowns of the Revolution engine block, alternator cover, clutch assemblies, and belt drive sprockets.Chassis & Controls: Front and rear brake master cylinders, caliper rebuild components, and headlamp brackets.Reference Material: An official factory VIN breakdown decoder chart and a complete back-of-the-book hardware list for sorting individual fasteners
selling as pictured 071326kt
