TIMKEN Industrial Truck Tapered Roller Bearing Single Cone Straight Bore Steel

Shipping calculated at checkout.

TIMKEN Industrial Truck Tapered Roller Bearing Single Cone Straight Bore Steel.

This item is new. Please look at pictures.

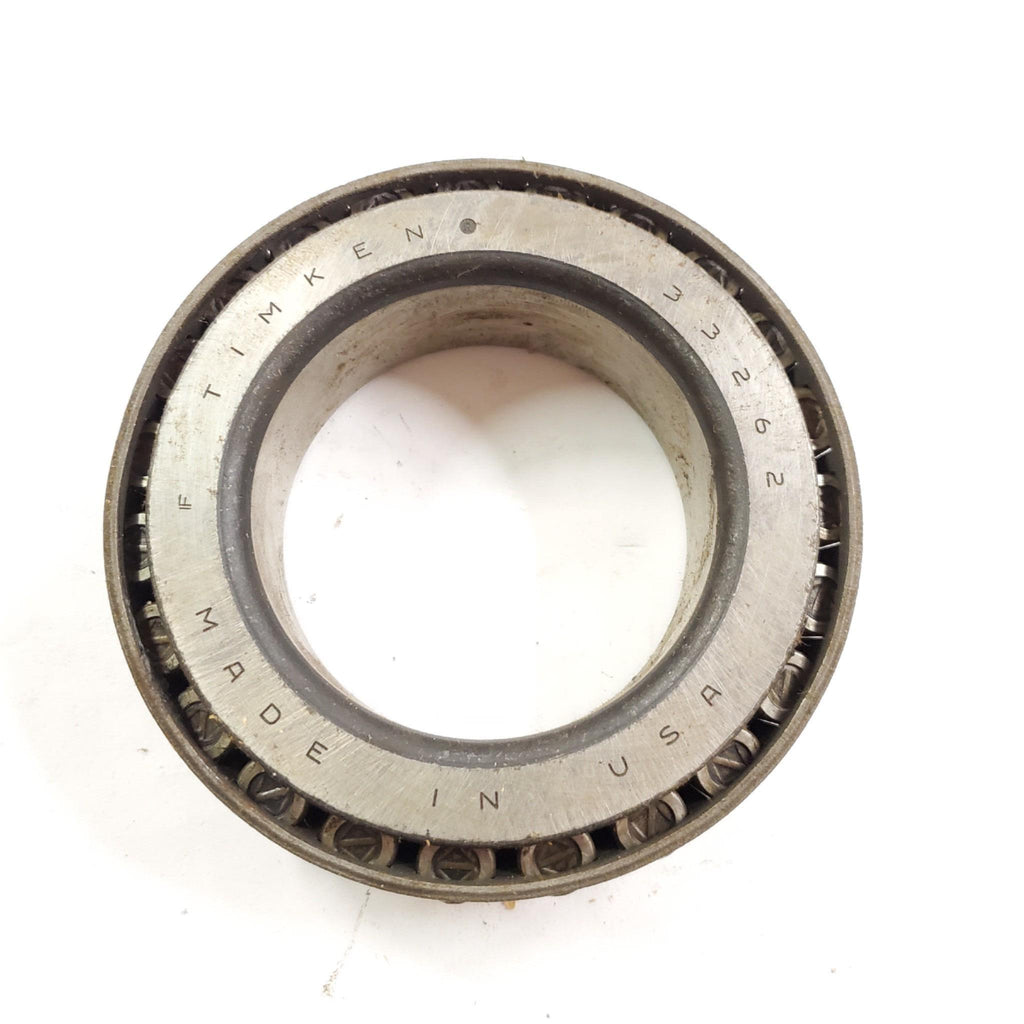

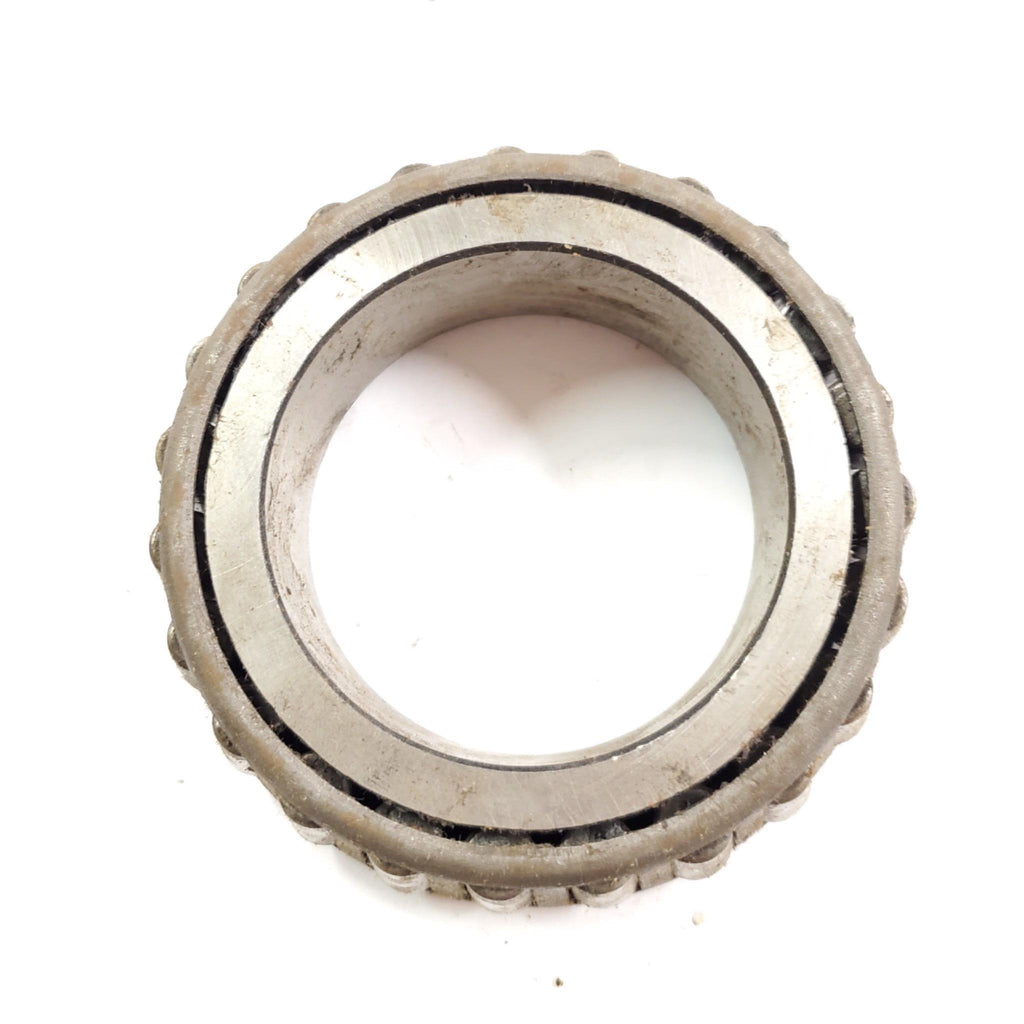

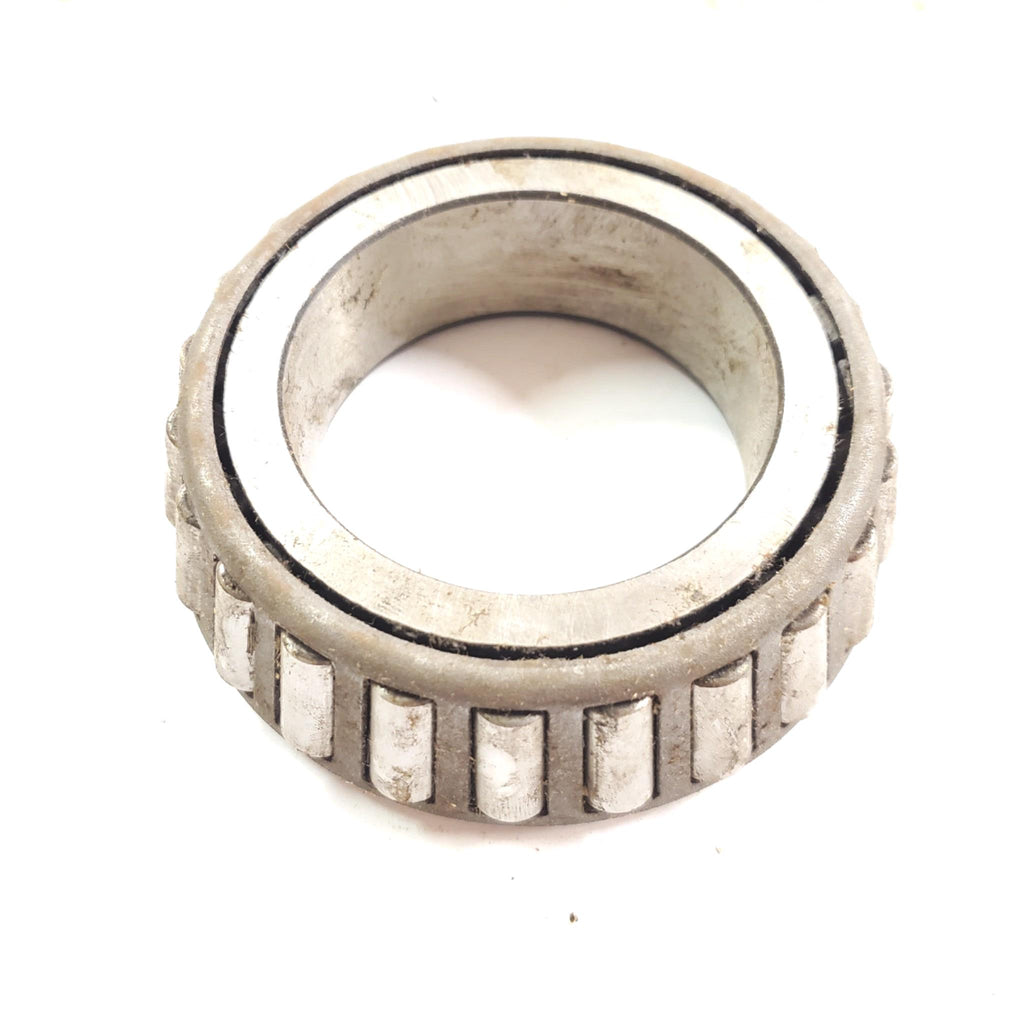

TIMKEN Part # BR33262 Cone

Brand	TIMKEN

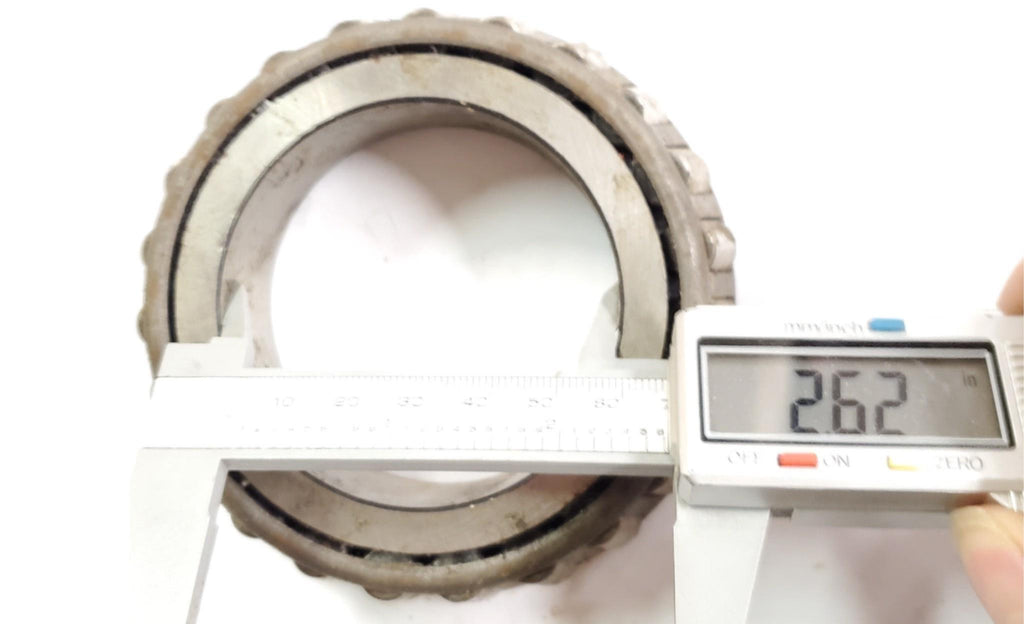

Inside Diameter	2.62 in
Trans Main Shaft Extension Bearing Width	1.18 in
VMRS Code	015009014
Application	Industrial or HD Equipment
Quality Level	Best

Series	33000
Cone Part Number	33262

Cage Type	Stamped Steel
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)¹	54200 lbf241000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)²	14000 lbf62400 N

d - Cone Bore	2.6250 in66.675 mm
B - Cone Width	1.1875 in30.163 mm

R - Cone Backface "To Clear" Radius³	0.14 in3.600 mm
da - Cone Frontface Backing Diameter	2.95 in75 mm
db - Cone Backface Backing Diameter	3.19 in81 mm
Ab - Cage-Cone Frontface Clearance	0.07 in1.8 mm
Aa - Cage-Cone Backface Clearance	0.07 in1.8 mm
a - Effective Center Location⁴	-0.11 in-2.8 mm

C90 - Dynamic Radial Rating (90 million revolutions)⁵	8060 lbf35900 N
C1 - Dynamic Radial Rating (1 million revolutions)⁶	31100 lbf138000 N
C0 - Static Radial Rating	44300 lbf197000 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁷	6020 lbf26800 N

K - Factor⁸	1.34
G1 - Heat Generation Factor (Roller-Raceway)	84.2
G2 - Heat Generation Factor (Rib-Roller End)	25.9
Cg - Geometry Factor⁹	0.116

¹ Based on 1 x 10⁶ revolutions L₁₀ life, for the ISO life calculation method.
² Based on 90 x 10⁶ revolutions L₁₀ life, for The Timken Company life calculation method. C₉₀ and C_a90 are radial and thrust values for a single-row, C₉₀₍₂₎ is the two-row radial value.
³ These maximum fillet radii will be cleared by the bearing corners.
⁴ Negative value indicates effective center inside cone backface.
⁵ Based on 90 x 10⁶ revolutions L₁₀ life, for The Timken Company life calculation method. C₉₀ and C_a90 are radial and thrust values.
⁶ Based on 1 x 10⁶ revolutions L₁₀ life, for the ISO life calculation method.
⁷ Based on 90 x 10⁶ revolutions L₁₀ life, for The Timken Company life calculation method. C₉₀ and C_a90 are radial and thrust values for a single-row, C₉₀₍₂₎ is the two-row radial value.
⁸ These factors apply for both inch and metric calculations. Consult your Timken representative for instruction on use.
⁹ Geometry constant for Lubrication Life Adjustment Factor a3l.

Selling as pictured, save on shipping by coming to store in Butler, Pa.
