OEM Harley Road Tech Electronic Compass NOS Softail Road King Dyna FXST 74445-05
Part #: 74445-05
Harley-Davidson part number 74445-05 is the Road Tech Electronic Compass, a 2-inch backlit digital gauge with a black face.
It is part of the Road Tech instrument line and is designed for non-touring motorcycles, specifically providing directional readings and an illuminated display for night riding
- Diameter: 2 inches (Standard gauge size).
- Face Color: Black with white lettering.
- Display Type: 8-point digital compass (N, NE, E, SE, S, SW, W, NW).
- Backlighting: Illuminated for night riding; compatible with amber (67589-02) or red (74646-05) replacement bulbs.
- Sensor Type: Uses a "compass engine" sensor that detects the Earth's magnetic field.
- Accuracy Notes: According to Harley-Davidson instructions, readings are less accurate when the motorcycle is leaning (not vertical) or when traveling across large metal structures like bridges.
- Calibration: Requires a 16-point calibration procedure, which involves positioning the motorcycle in 16 directions around a 360-degree circle on level ground.
- Power Requirements: Designed for standard 12V DC systems.
-
Wiring Leads:
- Black Wire: Connects to the ground.
- White Wire: Connects to the high beam signal.
- Red/White (or Orange/White) Wire: Connects to the accessory power (switched ignition).
- Required Accessories: Must be used with a 2-inch Gauge Housing Kit and a model-specific Gauge Bracket Kit (such as Part #69487-06).
Fitment: According to the Harley-Davidson Service Information Portal, this part is designed to fit the following specific models and year ranges:
Road King Models:
- FLHR/I: 1997 and later.
- FLHRCI (Classic): 1998 and later.
Softail Models:
- FXST/I (Standard): 1999 and later.
- FXSTB/I (Night Train): 1998 and later.
- FXSTC/I (Custom): 1996–1999.
- FXSTD/I (Deuce): 2000 and later.
- FXSTS/I (Springer): 1996 and later.
- FLSTC/I (Heritage Classic): 1996 and later.
- FLSTF/I (Fat Boy): 1996 and later.
- FLSTS/I (Heritage Springer): 1997–2003.
Dyna Models:
- FXDWG/I (Wide Glide): 1996 and later.
Sportster Models:
- XL 883C (Custom): 1999 and later.
- XL 1200C (Custom): 1986 and later.
This part number (74445-05) is for the gauge only and requires additional hardware for a complete installation. Per Harley-Davidson's technical documents, you must also have:
- 2-Inch Compass Housing: Part #68206-05.
- 2-Inch Gauge Bracket Kit: Part #69487-06.
- Electronic Compass Mounting Kit: Model-specific kit required to house and power the gauge.
Please make sure of fitment before buying.

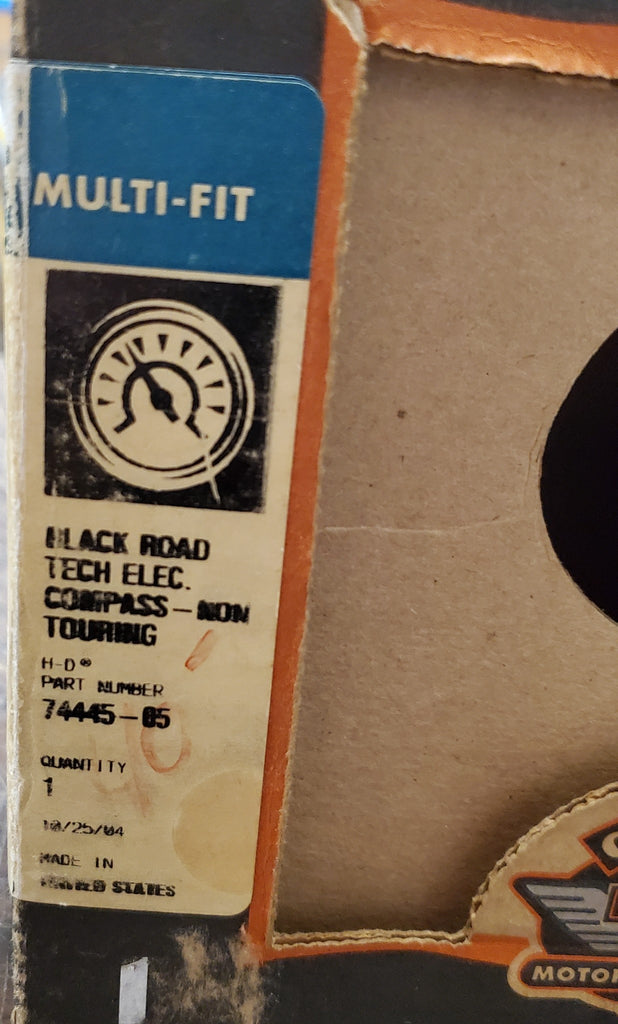

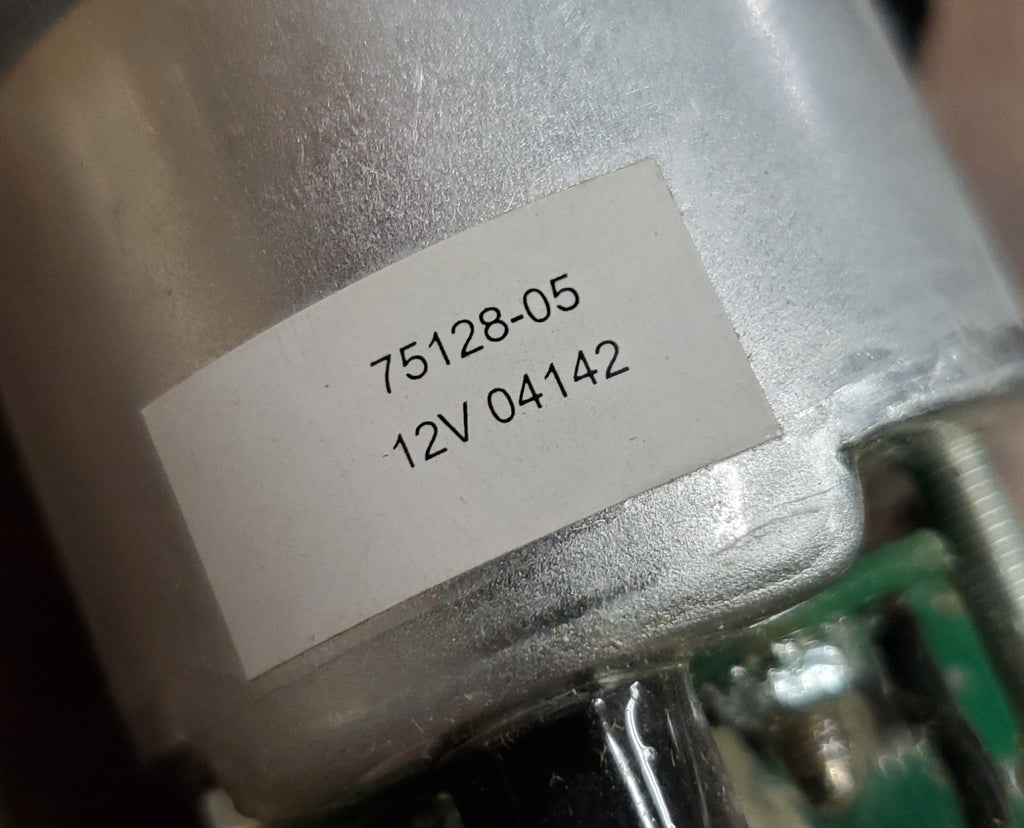

NOS, open for pictures. NOT TESTED.
Selling as pictured, save on shipping by coming to store in Butler, PA
