OEM Harley Davidson Gloss Black Saddlebag Mounting Bracket Softail FLSB 90201525
Part #: 90201525

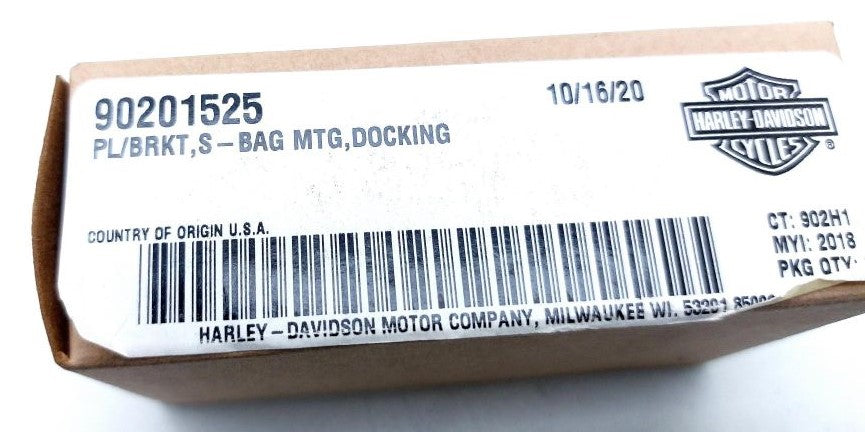

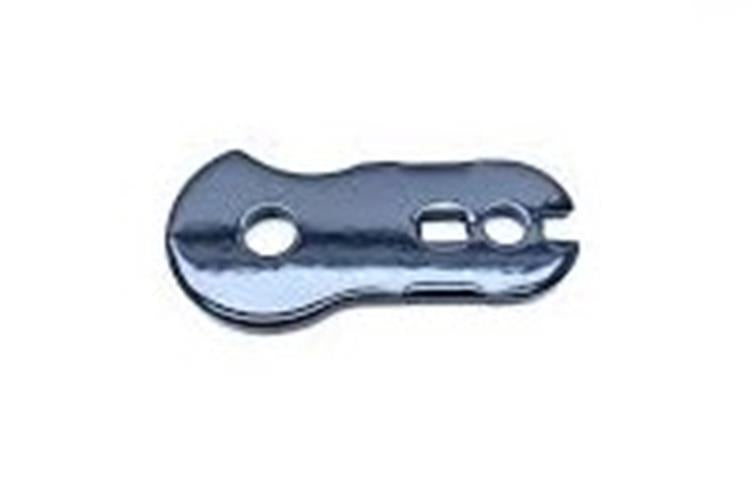

Harley-Davidson part number 90201525 is for a PL/BRKT, S-BAG MTG, DOCKING, which refers to a saddlebag mounting bracket or docking point.
This component is part of the system used to attach saddlebags to certain Harley-Davidson Softail models.
- Function: The part is an internal or lower mounting point/bracket for detachable saddlebags, working in conjunction with other components of the saddlebag system to provide secure attachment and easy removal.
- Material: The specific material is not explicitly stated in the documentation, but as an OEM structural component, it is likely made of a durable metal alloy (e.g., steel or aluminum) to withstand road vibrations and load requirements.
- Associated Torque Specifications: The mounting process involves specific torque settings for the various screws and nuts used with the docking system, not the bracket itself:
- Upper docking point screws: 28.5–36.6 N·m (21–27 ft-lbs).
- Lower front docking point screws: 10.9–13.6 N·m (96–120 in-lbs) or 16.3–24.4 N·m (12–18 ft-lbs) depending on the exact kit and motorcycle model.
- Saddlebag lower support arm screws: 6.8–10.2 N·m (60–90 in-lbs).
Fitment: This part is compatible with the following Harley-Davidson models and years:
- Harley-Davidson FLHC Softail Heritage Classic: 2018–2021
- Harley-Davidson FLHCS Softail Heritage Classic 114: 2018–2024, including Anniversary editions
- Harley-Davidson FLI Hydra-Glide Revival: 2024
- Harley-Davidson FLSB Softail Sport Glide: 2018–2024
- Harley-Davidson FXDRS Softail FXDR 114: Fits models where the saddlebag system is applicable
- Harley-Davidson FXLRS Softail Low Rider S: 2022
- Harley-Davidson FXLRST Softail Low Rider ST: 2022–2024
- Harley-Davidson FXRST Softail Low Rider El Diablo: 2022
Please make sure of fitment before buying.
NOS. not opened for pictures.
Selling as pictured, save on shipping by coming to store in Butler, PA
122325 CC
