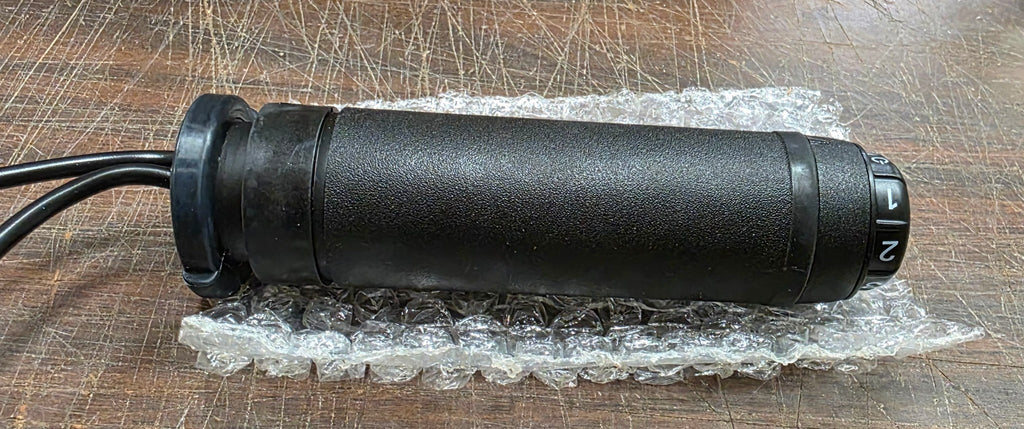

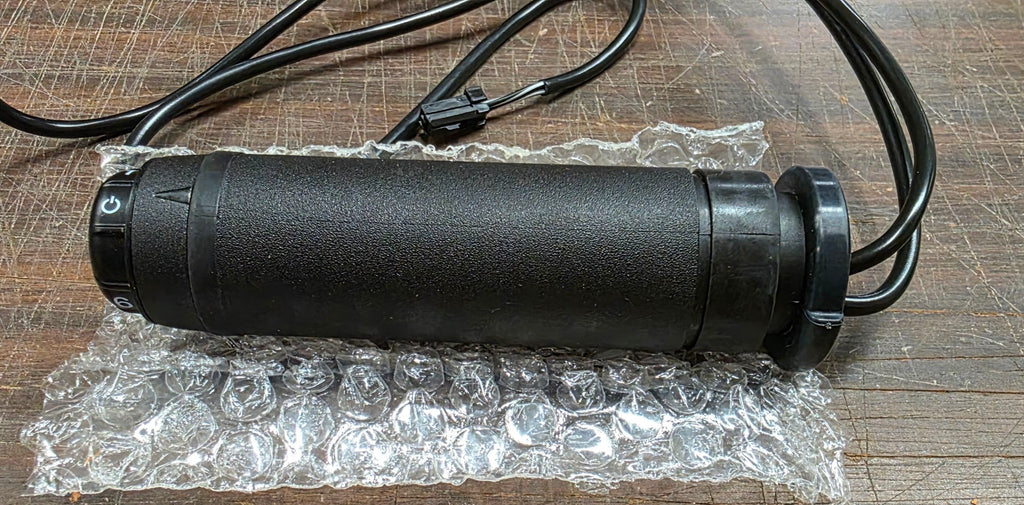

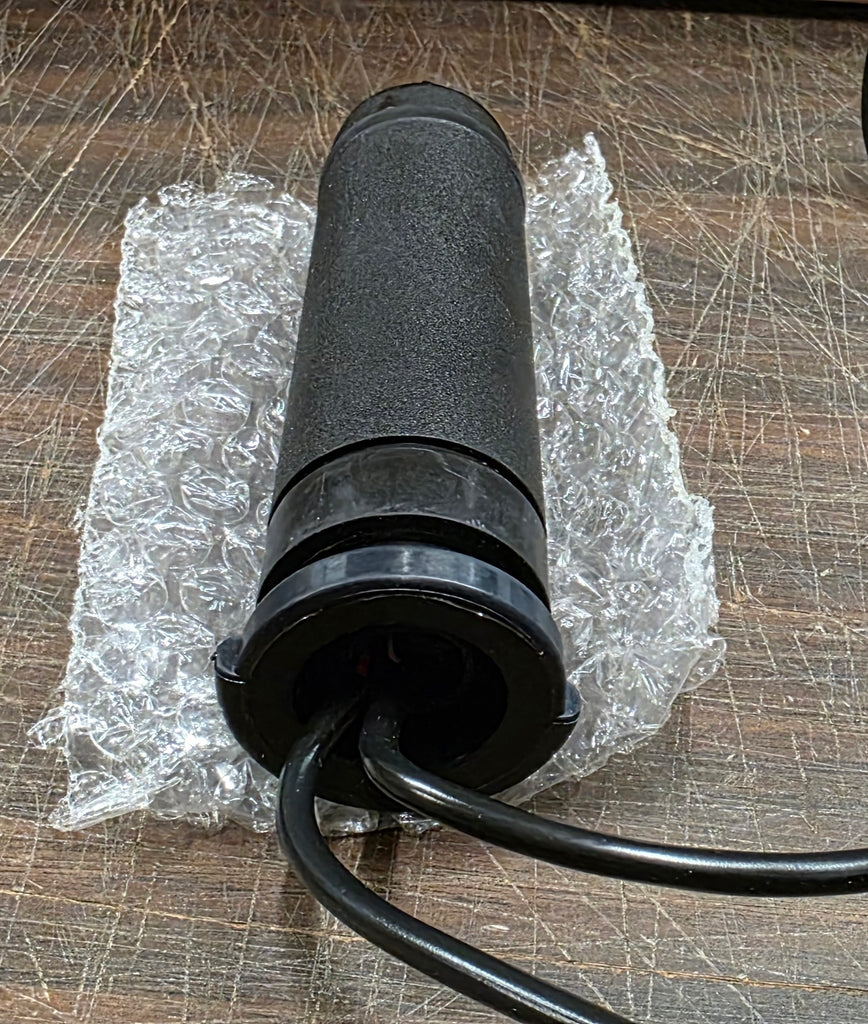

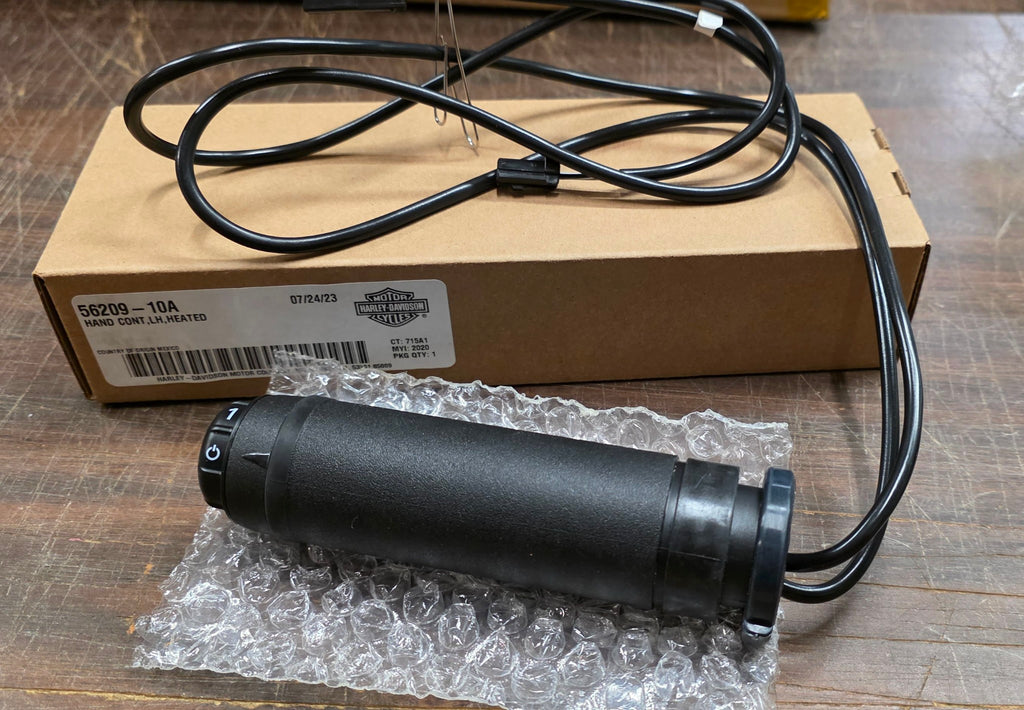

OEM Harley Left Hand Black Heated Control Grip Touring Softail Dyna 56209-10A

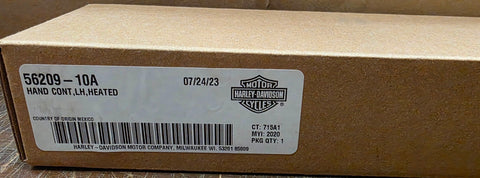

Part #: 56209-10A
The Harley-Davidson part number 56209-10A is a left-hand heated grip specifically designed for throttle-by-wire Touring models.
According to official Harley-Davidson service information and various parts databases, the key specifications include:
- Current Draw: This heated grip kit requires up to 3.5 amps of additional current from the motorcycle's electrical system.
- Diameter: The standard heated grips for these models typically feature a comfortable 1.6-inch diameter to ensure excellent control in all weather conditions.
- Material and Finish: Constructed with a rubber surface for high traction and a plastic internal structure. It typically features a Gloss Black finish.
- Weight: Individual shipping and product weights are listed at approximately 0.50 KGS (about 1.1 lbs) for the unit.

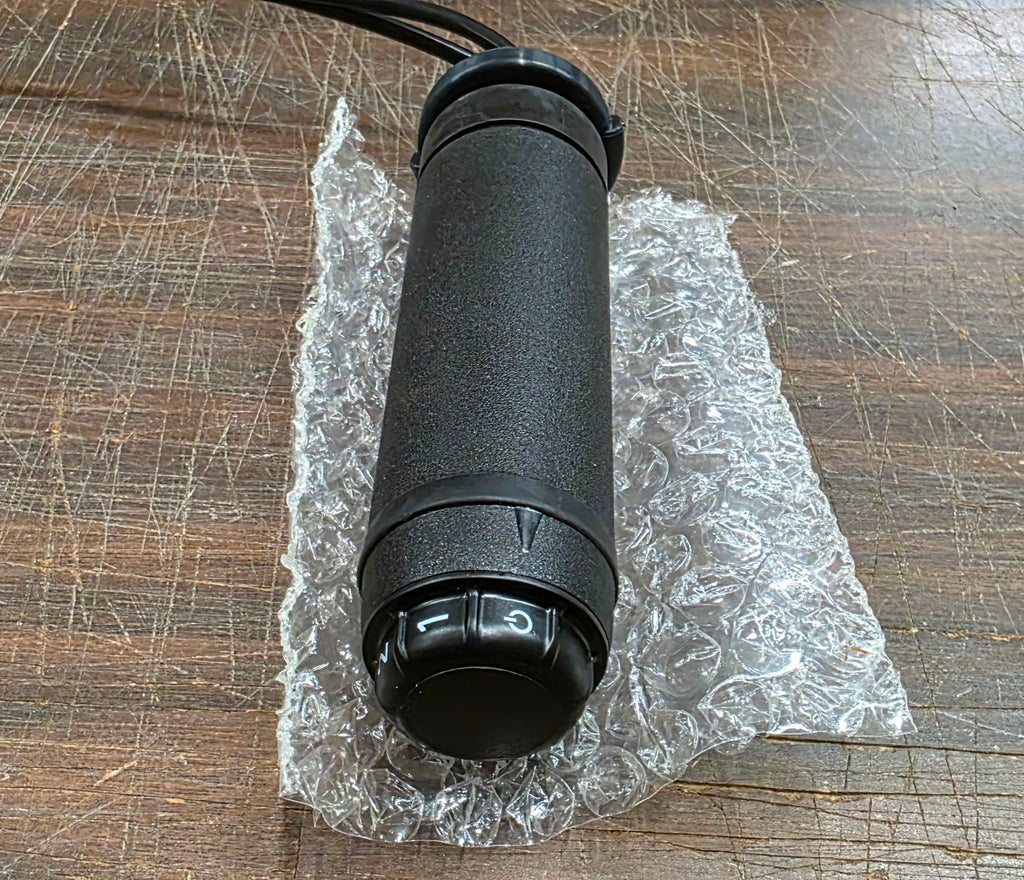

- Heat Settings: Features variable temperature control, often including High, Medium, and Low settings that are thermostatically controlled to maintain consistent heat regardless of outside temperature.
Installation Specs:
- Mounting: Uses a glueless design, allowing for easier removal without damaging the handlebars or the grip itself.
- Fastener Torque: For models requiring switch housing adjustments during installation, Harley-Davidson specifies a torque of 35–48 in-lbs (4–5.4 N·m) for switch housing screws.

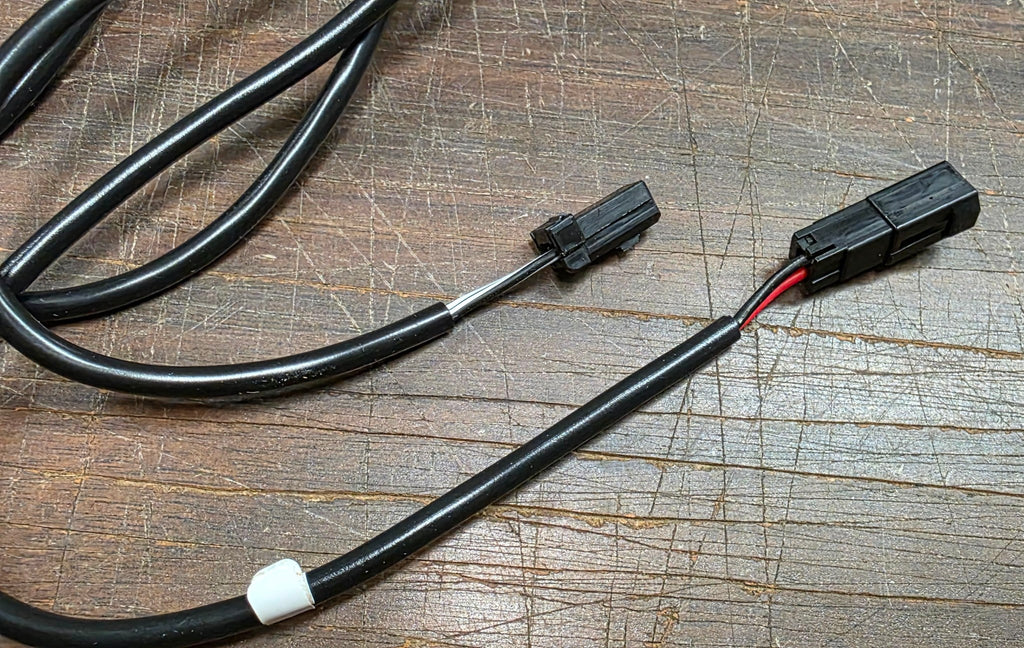

- Wiring: Integrated into the factory wiring harness; the left grip typically contains the internal thermostat and control circuit.
Fitment: This part fits the following Harley-Davidson families, provided they have 1-inch diameter handlebars and throttle-by-wire systems:
-
Touring Models (2008–2025): Fits most Street Glide, Road Glide, Electra Glide, and Road King models.
- Exceptions: Does not fit 2023-later CVO (FLHXSE/FLTRXSE) or 2024-later Street Glide/Road Glide (FLHX/FLTRX) and STSE models.
- Softail Models (2016–2024): Fits most models, including the Heritage Classic, Fat Boy, Deluxe, and Slim.
- Dyna Models (2016–2017): Specifically fits the Low Rider S (FXDLS).
- Trike Models (2009–2025): Fits Freewheeler and Tri Glide Ultra models.
Critical Installation Requirements:
While the grip physically fits the handlebars of the models above, certain years require additional Electrical Connection Kits to function:
- 2014–2016 Touring/Trike: Requires separate purchase of kit .
- 2017–Later Touring/Trike: Requires separate purchase of kit 69201599A.
- 2016–2017 Softail/Dyna: Requires separate purchase of kit .
- 2018–Later Softail: Requires separate purchase of kit .
- 2008–2009 Touring: Requires additional jumper harnesses and terminal pins ( and others) for complete integration.
Non-Compatible Handlebars:
This part does not fit 2008–2013 models that have internally wired handlebars. The power wires for this specific grip must be routed externally on those older model years.
Please make sure of fitment before buying.
New, open for pictures.
Selling as pictured, save on shipping by coming to store in Butler, PA
