OEM Harley Davidson Rear Brake Control Linkage Rod Custom Sportster XL 34581-04
Part #: 34581-04

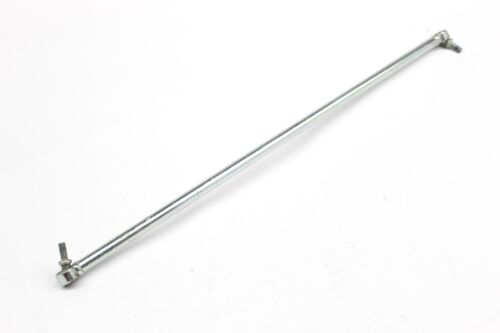

Harley-Davidson part number 34581-04 is a Rear Brake Control Linkage Rod (also referred to as a "Brakerod Asy" or "Pull Rod") designed for Sportster models equipped with forward controls.
- Hardware Compatibility: This part is designed to work with 5/16-18 hardware.
- Assembly Type: It is a single-piece "pull rod" assembly used to link the forward control brake pedal to the rear master cylinder.
- Length: Approximately 47 cm (approx. 18.5 inches).
- Material: OEM versions are typically constructed from steel.
Installation Specs:
- Torque Values: Mounting screws for related brake control components typically require 13.6–20.3 N·m (120–180 in-lbs).
- Required Clearance: Installation often requires the removal of the exhaust to properly access the rod and master cylinder bell crank.
Fitment: The Harley-Davidson part number 34581-04 has a specific fitment for 2004–2013 Sportster (XL) models that are equipped with factory forward controls.
It is a "pull rod" style linkage that connects the forward brake pedal to the rear master cylinder.
This part is the standard OEM brake rod for the following models when they have forward controls installed:
- XL883C (Sportster 883 Custom): 2004–2010
- XL1200C (Sportster 1200 Custom): 2004–2013
- XL1200V (Sportster Seventy-Two): 2012–2013
- XL1200X (Forty-Eight): 2010–2013
- XL1200N (Nightster): 2007–2012 (If converted to forward controls)
- XL883N (Iron 883): 2009–2013 (If converted to forward controls)
Please make sure of fitment before buying.
New
Selling as pictured, save on shipping by coming to store in Butler, PA
033026 CC
